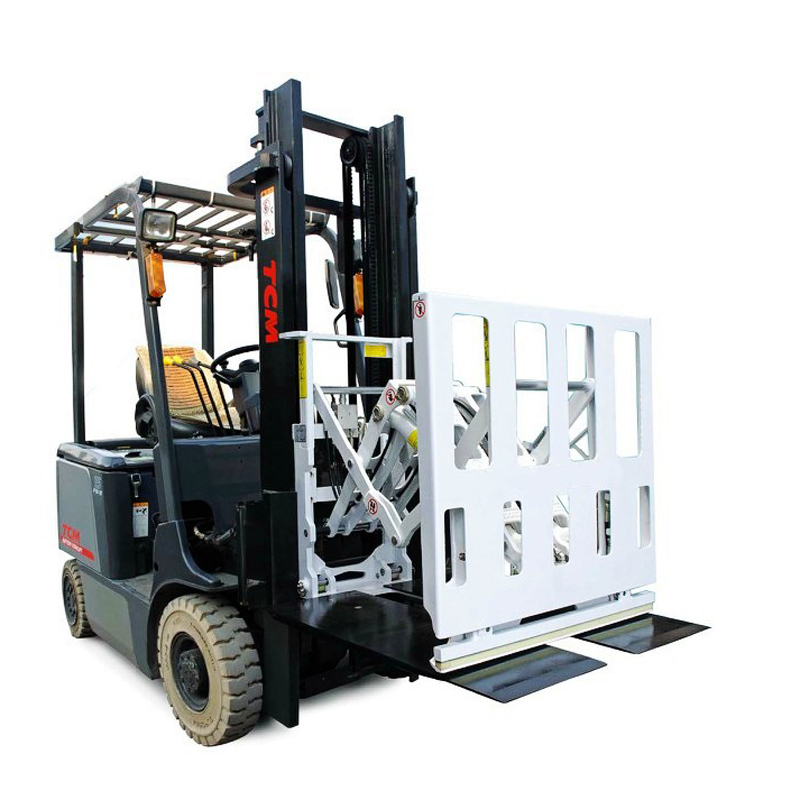

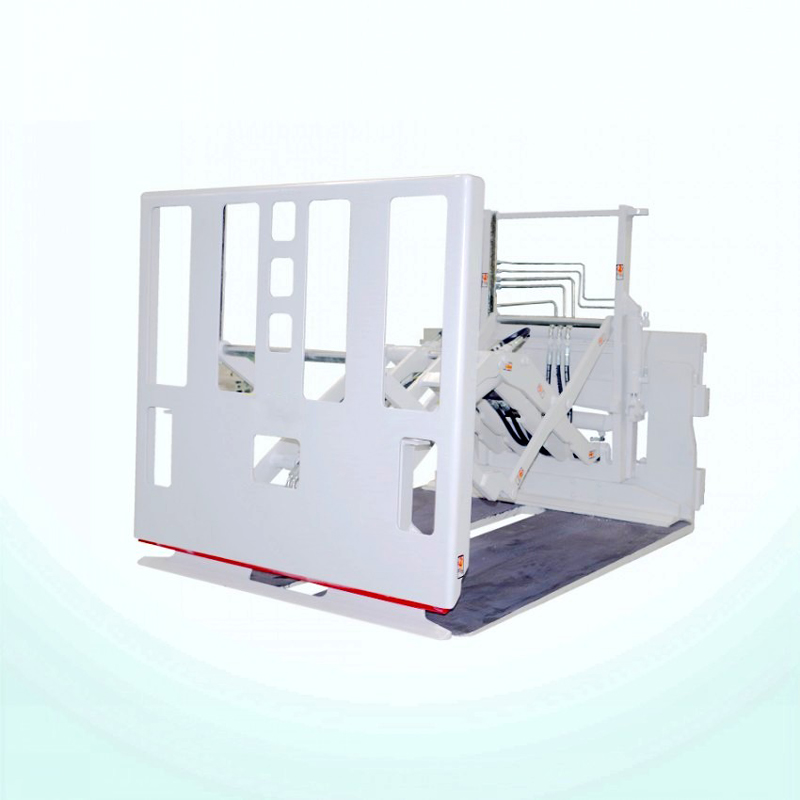

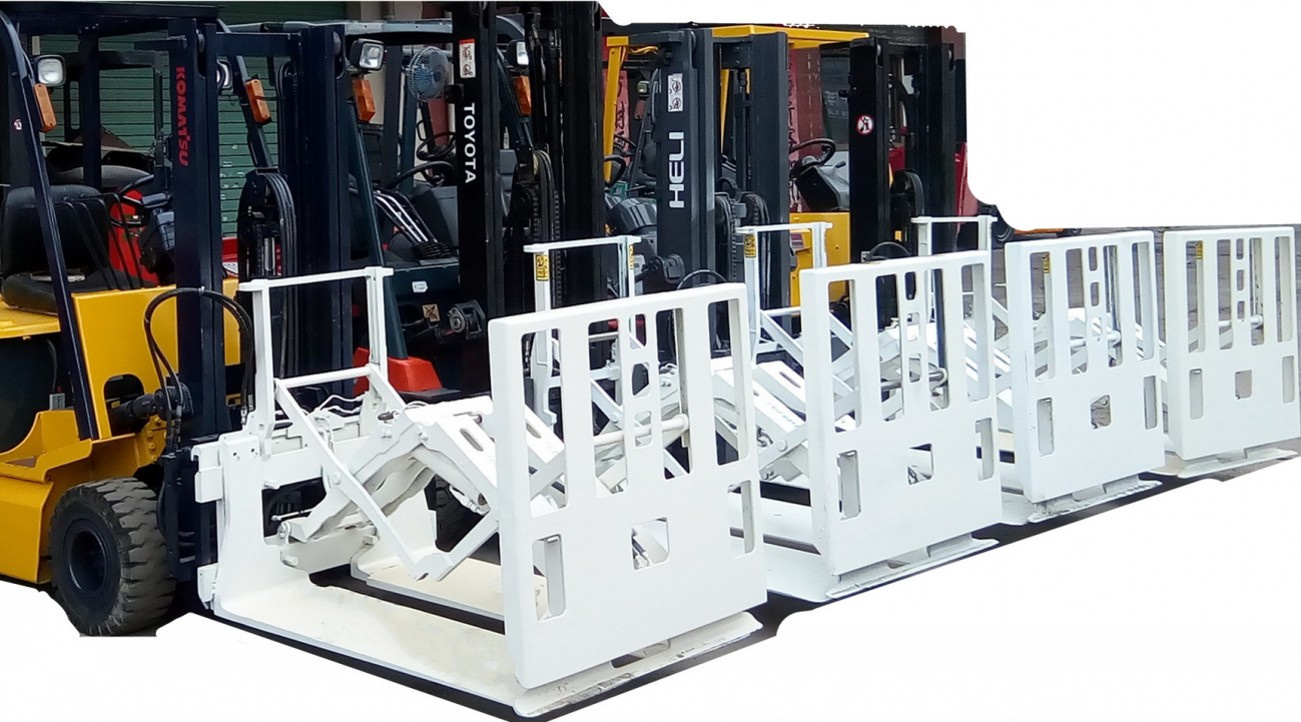

Forklift Attachment Push Pull Device for Slip Sheets

A push pull forklift attachment is a versatile tool used for handling palletless loads with slip sheet. It allows for easy transportation of goods without pallets, maximizing efficiency and saving space in warehouses and distribution centers. This innovative attachment streamlines material handling processes, reducing manual labor and increasing productivity. With its ability to handle various types of loads, the forklift push pull attachment is a valuable asset for any material handling operation.

product details

Character of Forklift Push Pull

Forklift push pull is a usefull forklift attachment which can handle cargos by utilizing a cheap slip sheet without pallets. It is widely used in the transportation and stacking of pallet-free goods.

There is no need for traditional pallets to carry or de-palletize. The loading and unloading of the entire stack of goods can be completed with the help of a plastic slip sheet or paper slip sheet.

Forklift Push Pull Types

(1) Quick Loading Type

It can be quickly assembled on any type of forklift without exchanging forks, which can meet the requirements of different working conditions of customers, especially those who use both slip sheets and pallets.

(2) Standard type

The forks of forklift must be moved when install it, because its forks is thick and strong enough to load and unload cargo.

(3) Additional device-slip sheet retaining device

With this device, the slip sheet can be pressed and kept on the device when pushing the cargo onto truck or container, which is suitable for use slip sheets for many times in your own warehouse.

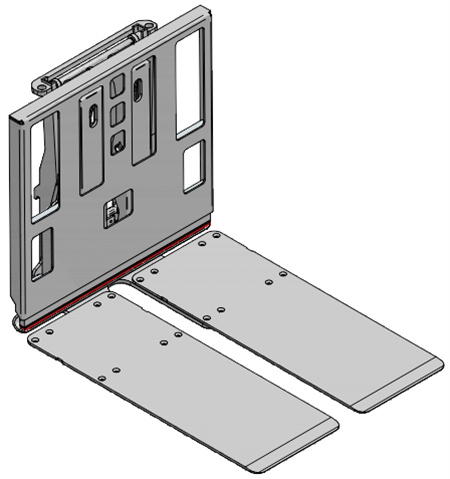

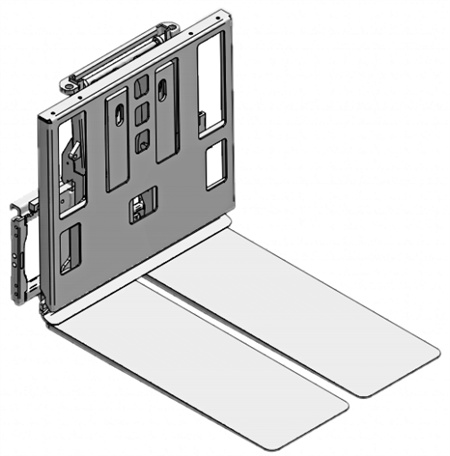

Quick loading type

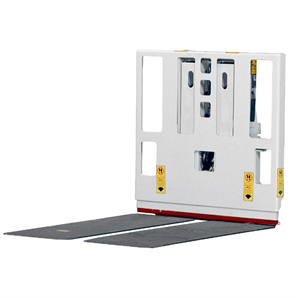

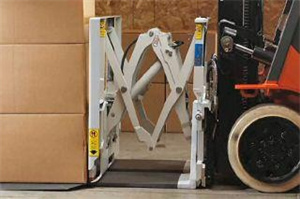

Standard type

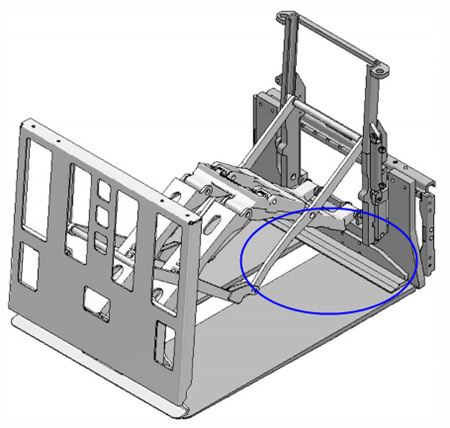

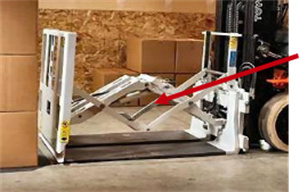

Slip sheet retaining device

Advantages of Forklift Push Pull Attachment

The Forklift push pull attachment can save pallets and reduce damage of cargo during handling operation.

1. The overall structure is reasonable, the field of vision is wide, dexterous and easy to operate;

2. Use the skateboard to carry out pallet-free transportation or loading of goods, which partially solves the problem of large space occupied by pallets for stacking and storage;

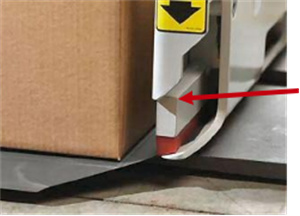

3. The fork plate is durable and smooth, which can avoid damage to the contact parts of the sliding plate during operation;

4. The hydraulic components are reasonably designed so that the hydraulic system is well protected and has a long life;

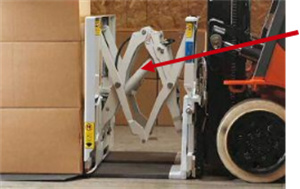

5. The ejector linkage mechanism is scientifically designed, has good strength, rigidity and good synchronization;

6. The overall materials are made of high-strength alloy materials, and key accessories such as oil pipes and valve cores are all made of internationally renowned brands.

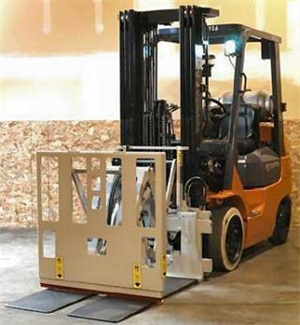

Forklift Push Pull Operation

STEP 1 – Equipment Push Pull Device must be fitted to the Forklift

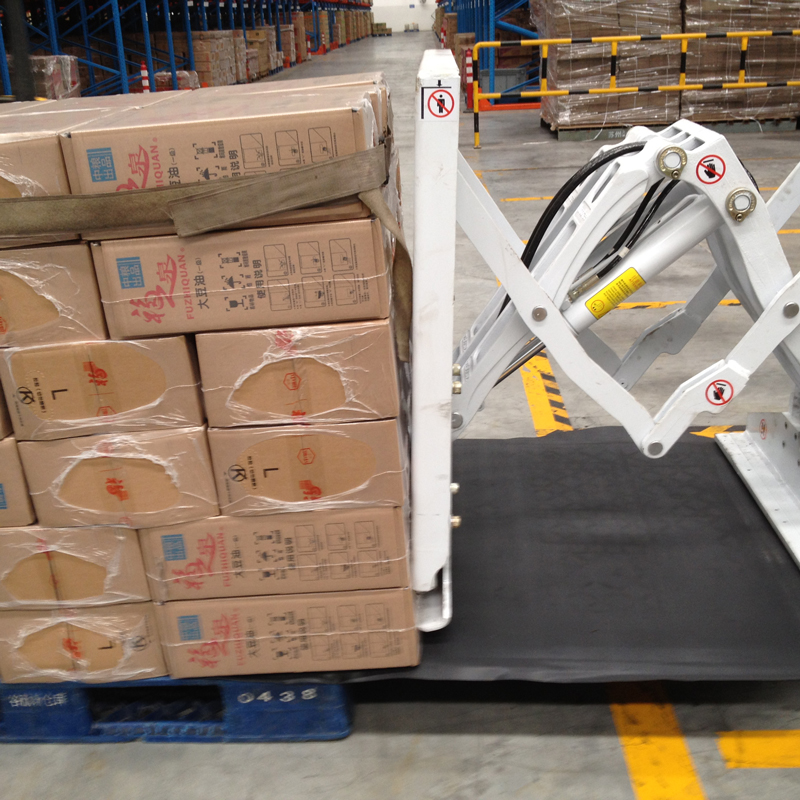

STEP 2 – Loading the Slip sheet Extend the Push Pull	STEP 3 – Grip the Slip sheet Pull Tab Grip the Pull Tab
STEP 4 – Pull the load back onto the Forklift Using the Pull Tab pull the load back onto the forklift	STEP 5 – Unload from the Forklift 1.Position the load over the unloading point (truck deck) 2.Release the Pull Tab gripper 3.Simultaneously extend the Push Pull Device as you reverse
